Bromic Affinity Smart-Heat Dimmer Controller for Electric Patio Heaters

Name: Bromic Affinity Smart-Heat Dimmer Controller for Electric Patio Heaters
Brand: Bromic
SKU: BH3130061
Price: 1033.0 CAD
Availability: InStock

SKU BH3130061

Brand: Bromic

$1,033.00 - $5,507.00

$1,033.00

$1,033.00 - $5,507.00

$1,033.00

Best Price Guarantee — Learn More

Quantity

Product Description

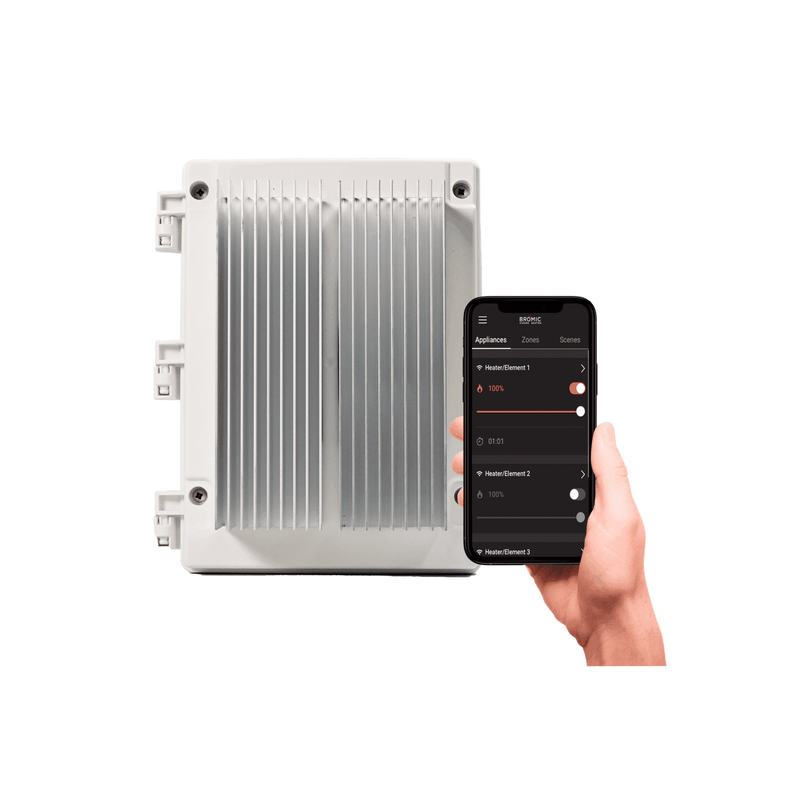

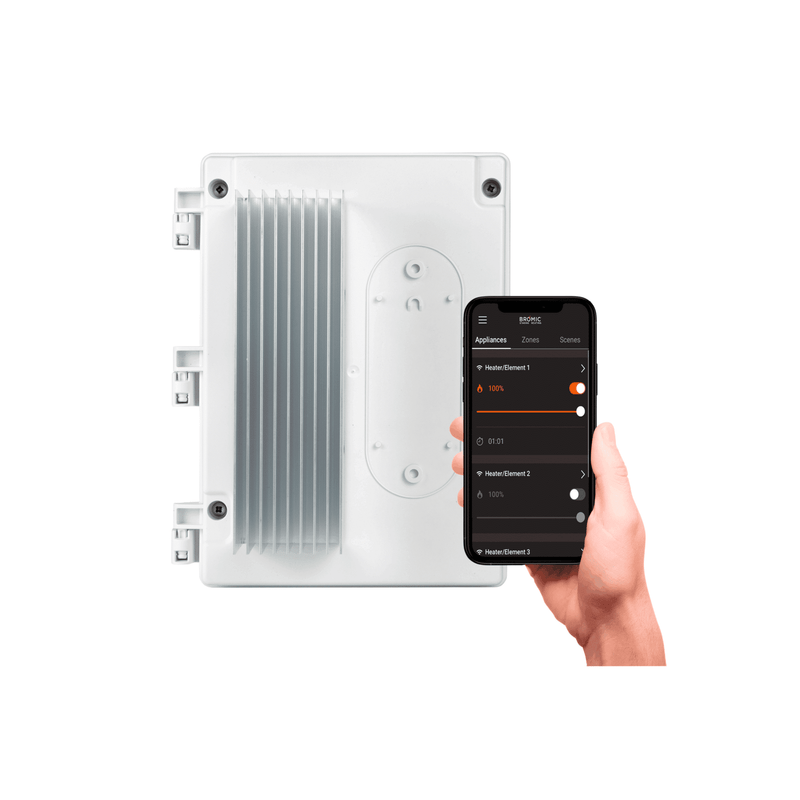

The Affinity Dimmer controller adjusts your Bromic electric heaters in 1% steps from the Bromic Heating app, so a mild evening gets a little warmth and a cold one gets all of it. It connects over Wi-Fi or Bluetooth, runs timers and schedules, groups heaters into zones, and works with Alexa and Google Home. The Expansion Board ties it into home automation systems.

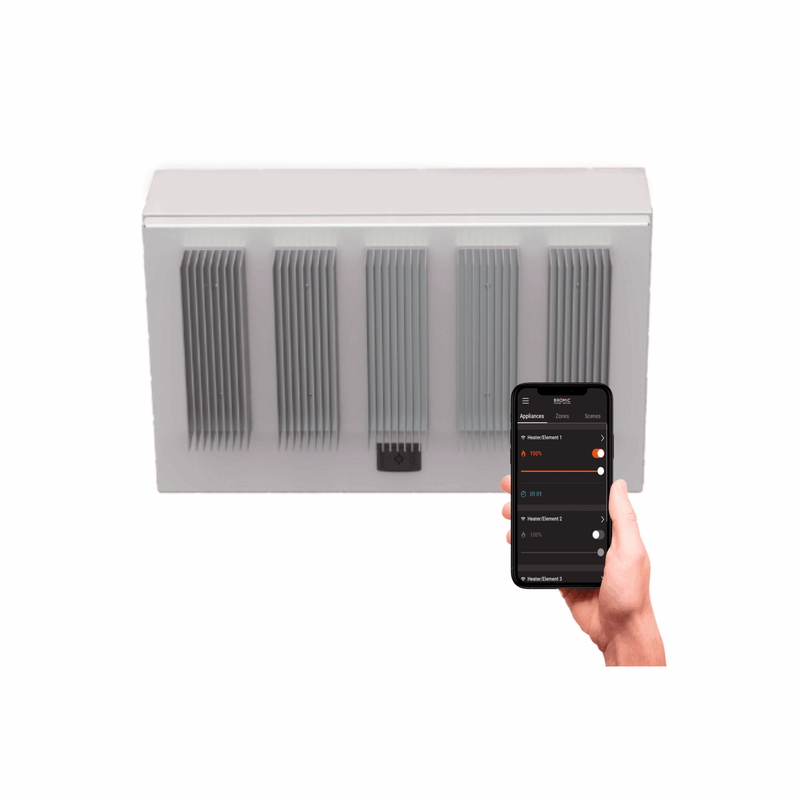

Each channel runs up to 6000W. Pick 1, 2 or 5 channels depending on how many groups you want to dim separately; all heaters on one channel run at the same level. The 5-channel is three-phase and comes with the Expansion Board built in; the 1- and 2-channel take it as an add-on.

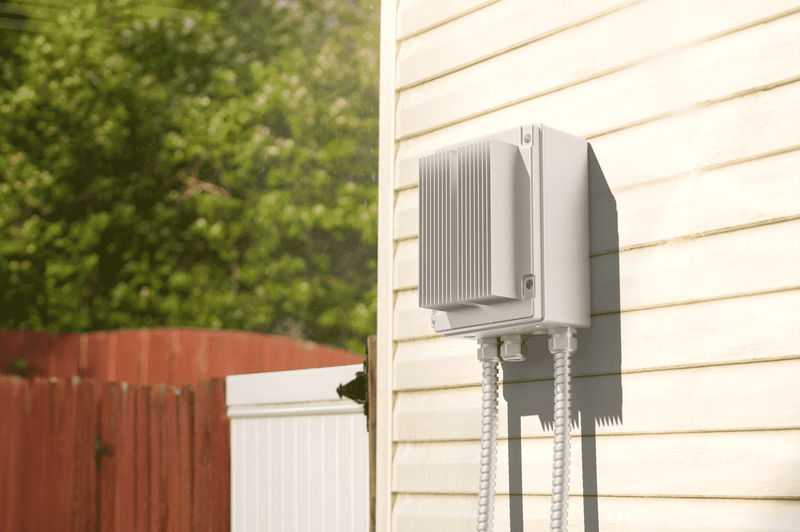

Works with Bromic Platinum, Tungsten and Cobalt electric heaters. Not for gas heaters or the Eclipse. IP54 rated, so it can be mounted outside under cover. Wi-Fi is 2.4GHz only. Have a licensed electrician install it.

Key Features

Dims Bromic electric heaters in 1% steps from the Bromic Heating app
Wi-Fi (2.4GHz) and Bluetooth, Bluetooth range about 30 ft
Timers, schedules and heater zones
Works with Amazon Alexa and Google Home
Connects to home automation systems with the Expansion Board (built into the 5-channel)

Each channel runs up to 6000W
Available in 1, 2 or 5 channels
Works with Platinum, Tungsten and Cobalt electric heaters, not gas
IP54 rated enclosure
UL and CSA certified

Specifications

TypeSmart dimmer controller

Compatible ModelsBromic Platinum, Tungsten & Cobalt electric heaters (electric only)

Sold As / Pack Size1, 2 or 5 channel

Channels1, 2 or 5

Max Load per Channel6 kW

ConnectivityWi-Fi (2.4GHz) + Bluetooth (30 ft); Ethernet/0–10V on 5-channel

Voice ControlAlexa & Google Home

IP RatingIP54

Operating Temperature-4°F to 86°F

Dimensions

Product Width8" (1 & 2-channel) / 19.9" (5-channel)

Product Depth6.5" (1 & 2-channel) / 8.4" (5-channel)

Product Height10.3" (1 & 2-channel) / 12.2" (5-channel)

Product Net Weight (lbs)3.5 (1-channel) / 5.3 (2-channel) / 27.6 (5-channel)

Support & Warranty

Bromic Heating Limited Warranty

Bromic® warrants its outdoor heaters and controls against defects in material and workmanship from the date of original purchase, for the following periods:

Platinum Electric Marine (land-based): 5 years
Platinum Electric: 3 years
Platinum Electric Marine (marine vessels): 3 years
Eclipse Pendant: 3 years
Eclipse Freestanding: 3 years
Tungsten Electric — Heating Elements: 7 years
Tungsten Electric — Heater: 2 years
Platinum Gas (excluding hoses & igniters): 2 years
Tungsten Gas (excluding hoses & igniters): 2 years
Tungsten Gas Freestanding: 1 year
Affinity Controllers: 1 year

Warranty applies to the original purchaser only and is non-transferable. Warranty covers replacement of the defective heater or part only. All labor, shipping, handling, and installation costs are the responsibility of the owner.

Not covered: hoses, igniters, labor charges, shipping and delivery costs, installation or removal costs, or damage caused by improper use or maintenance.

Please refer to your product manual for complete warranty information, conditions and limitations.
