Bromic Heating Bromic Platinum Smart-Heat Gas Heater, 500 Series Patio Heater

Bromic Platinum Smart-Heat Gas Heater, 500 Series

Name: Bromic Platinum Smart-Heat Gas Heater, 500 Series
Brand: Bromic Heating
SKU: BH0110004-1
Price: 3375.0 CAD
Availability: InStock

SKU BH0110004-1

Brand: Bromic Heating

$3,375.00 - $3,375.00

$3,375.00

$3,375.00 - $3,375.00

$3,375.00

Best Price Guarantee — Learn More

Quantity

Product Description

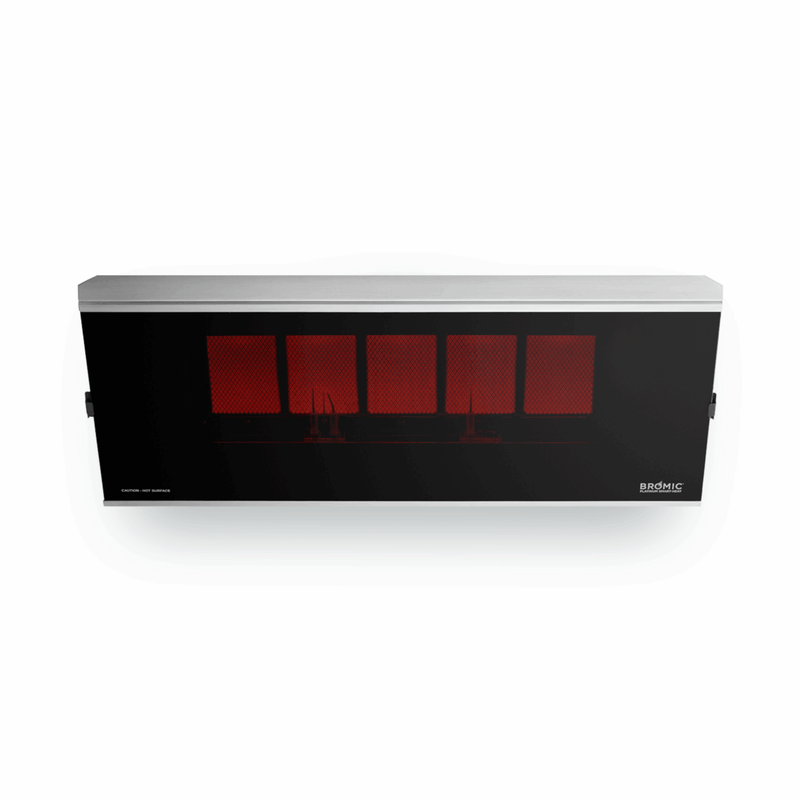

The Platinum 500 puts out 39,800 BTU of radiant heat through a tinted ceramic glass face, enough to cover about 215 square feet, with a soft red glow instead of a bright flame. Slow-release ceramic burners spread the heat evenly, and Bromic’s wind design keeps it running in gusts up to 20 km/h, where most gas heaters blow out.

It mounts on a wall or the ceiling (poles sold separately) with a pivot bracket, so you can tilt the heat toward the table. Direct electric ignition lights it right away with no pilot light, so it needs a 110V connection as well as gas. Install it 8 feet from the floor to the underside of the heater, and add a heat deflector if there’s less than 43" of clearance above it or it’s open to the weather. Installation by a licensed gas technician.

Runs on propane or natural gas.

Key Features

39,800 BTU radiant gas heater, warms about 215 sq. ft.
Tinted ceramic glass face spreads the heat evenly with a soft red glow
Stays lit in wind up to 20 km/h
Slow-release ceramic burners
Stainless steel body

Pivot bracket to aim the heat
Mounts on a wall or ceiling
Direct electric ignition, no pilot light
Works with the Bromic Affinity on/off controller or a wall switch

Specifications

SeriesPlatinum

Product TypeGas Patio Heater

Fuel TypePropane/Natural Gas

Heat SourceGas (radiant)

Ignition TypeDirect ignition (no pilot)

Coverage Area (sq ft)215

BTU Output39,800 BTU

Heat SettingsOn/off (not dimmable)

Volts110V

Amps2A

Installation TypeWall or Ceiling Mount

Mounting OptionsWall or ceiling (pivot bracket incl.; ceiling poles sold separately)

Remote Control OptionsCompatible with Affinity Smart-Heat On/Off controller (sold separately)

IP RatingIPX4

Burner MaterialCeramic (5-panel)

Body Material304 stainless steel with ceramic-glass fascia

Finish / ColourBlack & stainless

CSA / ETL / UL CertifiedIntertek (ETL) listed

Dimensions

Product Width29.8"

Product Depth15.9"

Product Height16.6"

Product Net Weight (lbs)44

Support & Warranty

Bromic Heating Limited Warranty

Bromic® warrants its outdoor heaters and controls against defects in material and workmanship from the date of original purchase, for the following periods:

Platinum Electric Marine (land-based): 5 years
Platinum Electric: 3 years
Platinum Electric Marine (marine vessels): 3 years
Eclipse Pendant: 3 years
Eclipse Freestanding: 3 years
Tungsten Electric — Heating Elements: 7 years
Tungsten Electric — Heater: 2 years
Platinum Gas (excluding hoses & igniters): 2 years
Tungsten Gas (excluding hoses & igniters): 2 years
Tungsten Gas Freestanding: 1 year
Affinity Controllers: 1 year

Warranty applies to the original purchaser only and is non-transferable. Warranty covers replacement of the defective heater or part only. All labor, shipping, handling, and installation costs are the responsibility of the owner.

Not covered: hoses, igniters, labor charges, shipping and delivery costs, installation or removal costs, or damage caused by improper use or maintenance.

Please refer to your product manual for complete warranty information, conditions and limitations.
