Yoder Smokers Yoder Wichita 20" Loaded Wood / Black A41676 Freestanding Charcoal Smoker 811524030769

Yoder Wichita 20" Loaded

Name: Yoder Wichita 20" Loaded
Brand: Yoder Smokers
SKU: A41676
Price: 4995.0 CAD
Availability: InStock

SKU A41676

Brand: Yoder Smokers

$4,995.00 - $4,995.00

$4,995.00

$4,995.00 - $4,995.00

$4,995.00

Best Price Guarantee — Learn More

Quantity

Product Description

A true stick burner, built to be passed down.

The Loaded Wichita is a fully realized offset smoker platform built for pitmasters who want direct command over fire, airflow, and smoke. Made in Kansas and shaped by decades of hands-on pit building, it carries forward a legacy of American craftsmanship while meeting the demands of the modern cook.

At its core is a traditional firebox designed to burn real wood or charcoal and produce clean, thin blue smoke. A taller exhaust stack sharpens draft efficiency for a steadier burn and more even temperatures across the chamber, while a removable heat management plate lets you dial in balanced cooking or pull it entirely for higher heat and stronger airflow. Quarter-inch steel construction holds temperature through overnight cooks and responds predictably to every adjustment you make.

It's also built to move. A redesigned stand paired with front casters makes the pit stable but maneuverable — so you can set up for the wind, the crowd, or the cook in front of you.

From long overnights to weekend gatherings, the Loaded Wichita delivers the control, durability, and flexibility serious barbecue demands.

Key Features

Traditional offset firebox — burns real wood or charcoal for clean, thin blue smoke
Removable heat management plate for a balanced chamber, or pull it for higher heat, stronger airflow, and hot-and-fast cooks
Establish distinct temperature zones for different cuts
1/4-inch steel cooking chamber for thermal stability through long cooks
1,610 sq. in. total cooking surface

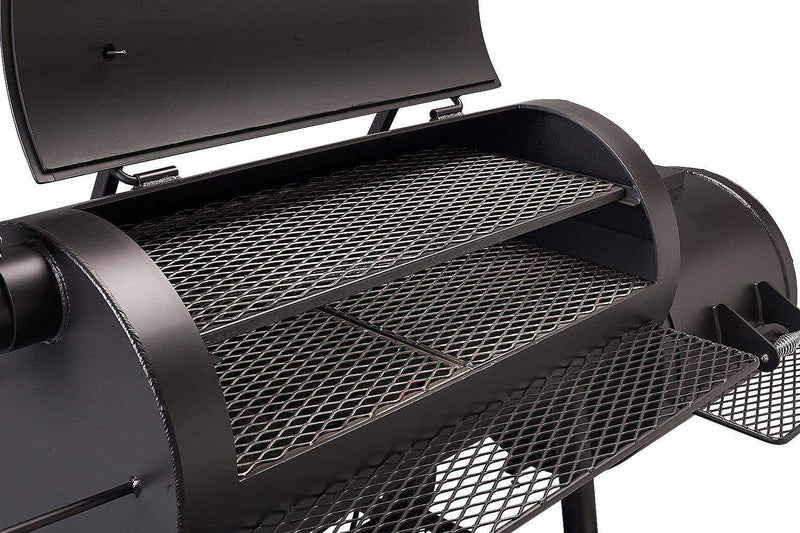

Two 19.8″ x 19″ stainless main cooking grates
35.5″ x 14.5″ stainless second-level slide-out cooking shelf
19″ x 18″ cooking grate in the firebox
Log grate and ash cleanout tool included
Door counterweight for effortless opening

Stay-cool handles
Dual door temperature gauges
Integrated probe port for remote thermometers
Grease drain and pot warmer
Heavy-duty casters on the front legs, wagon wheels at the rear
Removable wire shelf for added workspace
Overall: 77.9″ L × 34.5″ D (incl. front shelf) × 58.2″ H, 591 lbs
Optional add-ons: propane log lighter, fitted cover (with counterweight), charcoal grate for the cooking chamber, charcoal basket for the firebox
Built in Kansas — American-made, backed by decades of hands-on pit building

Main Specifications

Series

Wichita

Cooking grate type

304 Stainless Steel

Cooking grate size

19.8" x 19"

Total cooking area (sq in)

1610.0

Side shelves included

Yes

Wheels / locking casters

Yes

Built-in thermometer

Yes

Grill style

Offset Smoker

Top vent type

Taller exhaust stack

Ash removal system

Ash cleanout tool included

Probe port included

Yes

Firebox material

1/4" Steel

Heat deflector / indirect cooking accessory included

Yes

Product & Package Dimensions

Product Dimensions

Depth

34.5

Height

58.2

Weight

591.0

Support & Warranty

Yoder Smokers Pellet Grill Limited Warranty

Yoder Smokers® warrants its pellet grills against defects in material and workmanship under normal residential use, when set up, cleaned, and maintained in accordance with factory recommendations, for the following periods:

Main Cooking Chamber: 10 years (no burn through)
Electronic Control System (ACS controller, thermocouple, auger motor & fans): 3 years (material and manufacturing defects)
Ceramic Igniter: 3 years (material and manufacturing defects)
All Other Components: 6 months (material and manufacturing defects)
Warranty Replacement Components: 1 year from date of shipment

Must be registered at yodersmokers.com within 30 days of purchase for warranty to be valid. This warranty is transferable for the duration of the specific warranty periods. Only premium food-grade pellets may be used as fuel.

Not covered: paint, rust or oxidation (unless structural integrity is compromised), normal wear and tear (scratches, dents, dings, chipping), interior color changes, commercial or food service use, improper assembly or maintenance, accidents, natural disasters, unauthorized modifications, or damage caused by environmental conditions.

Please refer to your product manual for complete warranty information, conditions and limitations.
